Specifications
Tip
Tip
Additional I/O's All EPSherpa models are extendible with additionaly I/O's through the accessories. See accessories for more information.

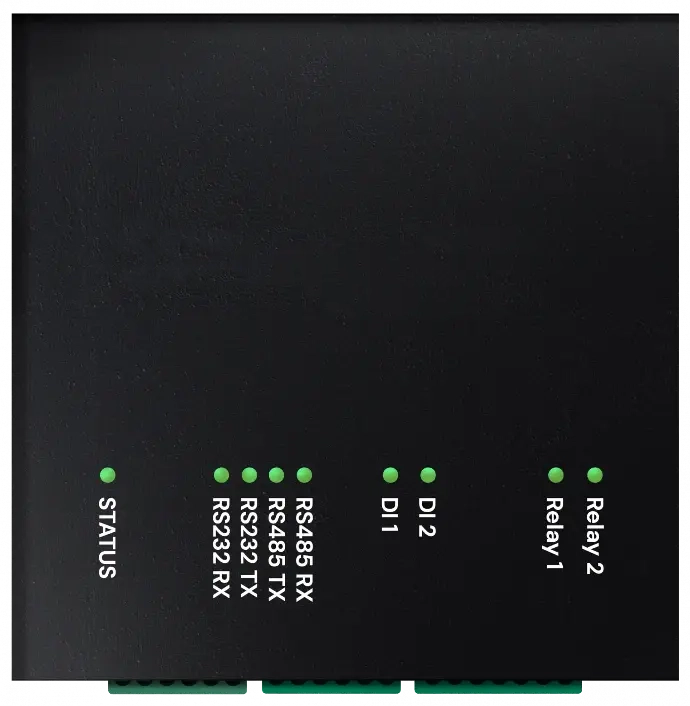

EPSherpa Pro (Model OM1)
| Property | Value |
|---|---|
| Casing material | Aluminum |
| Dimensions | 135mm x 125mm x 50mm |
| Weight | 615g |
| Ambient temperature | -10°C to +60°C |
| Humidity | 5% - 95% non-condensing |
| Power supply | 12Vdc, 2A via 230Vac adaptor |
| Interfaces |
|
| Supported device types |
|
| Appliance class | IEC 61140 class III appliance |
| Pollution degree | IEC 60664 pollution degree 3 |
| Altitude | 0 – 2000m |
| IP rating | IP2X |

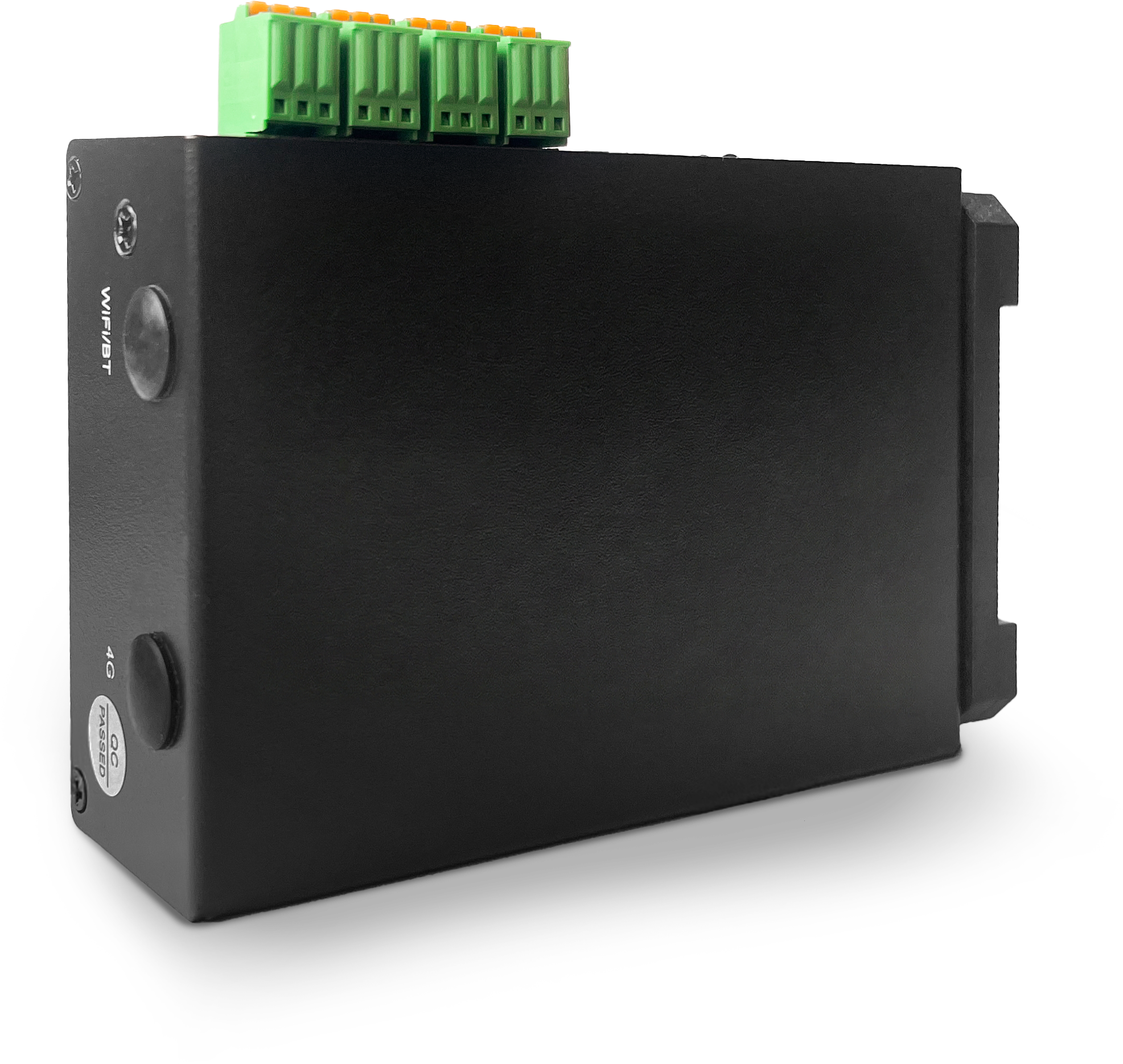

EPSherpa Home (Model EDS)
| Property | Value |
|---|---|
| Casing material | Aluminum |
| Dimensions | 102mm x 73mm x 35.2mm (DIN-rail bracket and antenna not included) |
| Weight | 500g |
| Ambient temperature | -25°C to +60°C |
| Humidity | 5% - 95% non-condensing |
| Power supply | 12V/2A power adaptor |
| Interfaces |
|
| Supported device types |
|
| Appliance class | IEC 61140 class III appliance |
| Pollution degree | IEC 60664 pollution degree 3 |
| Altitude | 0 – 2500m |
| IP rating | IP3X |

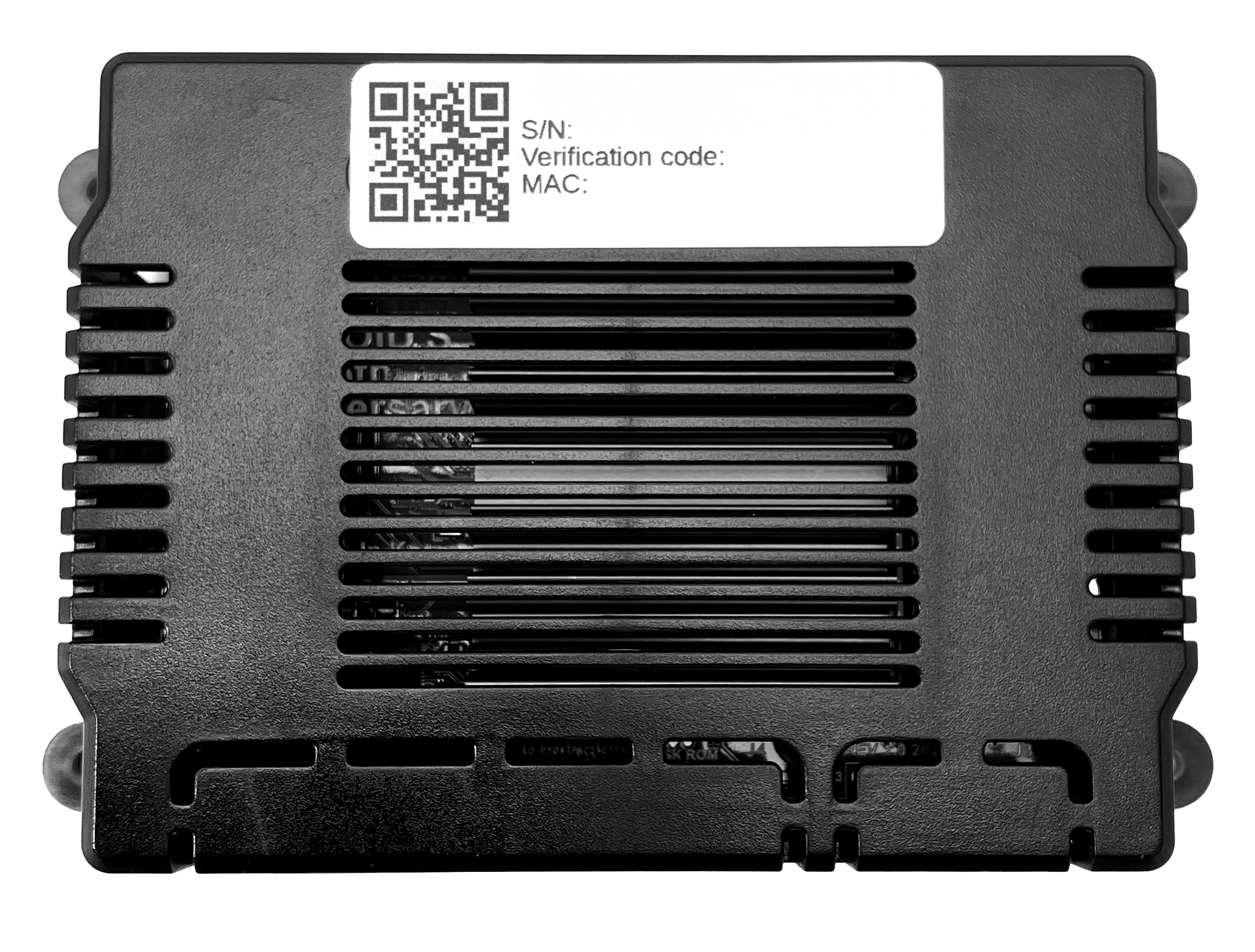

EPSherpa Lite (Model M1S)
| Property | Value |
|---|---|
| Casing material | Plastic |
| Dimensions | 120mm x 90mm x 30mm |
| Weight | 150g |
| Ambient temperature | -20°C to +70°C |
| Humidity | 10% - 90% non-condensing |
| Power supply | 5V/3A power adaptor |
| Interfaces |
|
| Supported device types |
|
| Appliance class | IEC 61140 class III appliance |
| Pollution degree | IEC 60664 pollution degree 3 |
| Altitude | 0 – 2500m |
| IP rating | IP3X |
